Below is the technical specs and data for the G5 Voodoo Pro V2 ECU
Connectors:

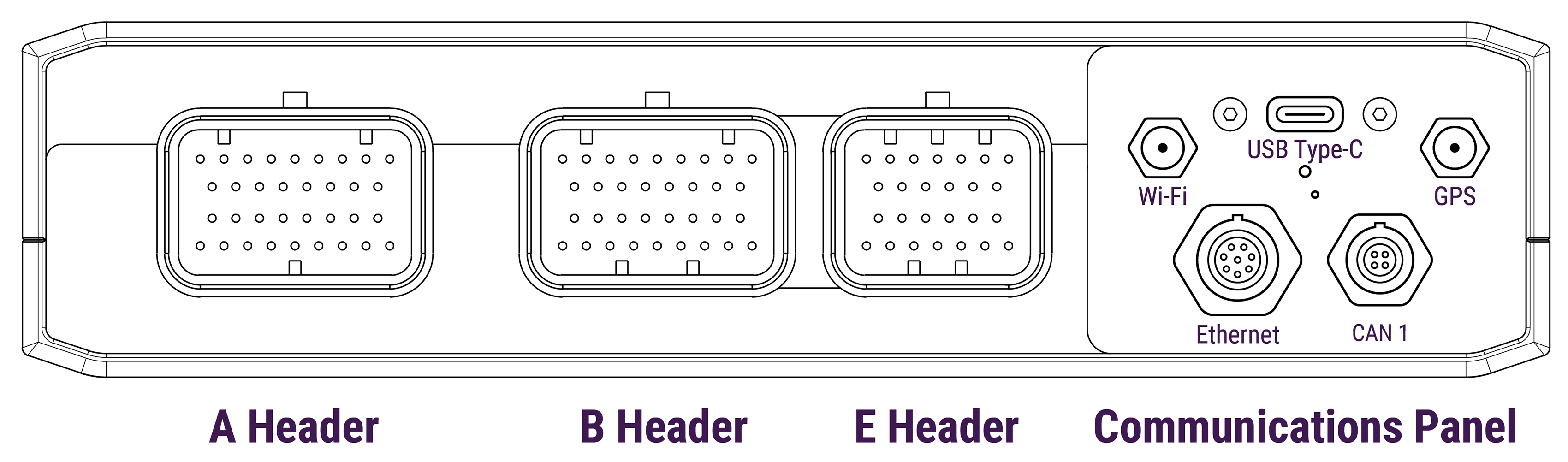

If you wish to make your own cables, the table bellow lists cable connector standards and part numbers where applicable. You can use the pinouts guide for more information on how to populate the connectors.
Also listed are relevant accessories for pre-made cables, pin kits, and antennas we have available to purchase through our dealer network.
|
ECU Connector |
Relevant Accessories |
Standard / Manufacturer Part No. |
|---|---|---|
|
A Header |
TE Superseal 1.0 |
|
|
B Header |
TE Superseal 1.0 |
|
|
E Header |
TE Superseal 1.0 |
|
|
Wi-Fi |
RP-SMA (reverse polarity) |
|
|
GPS |
|
SMA |
|
USB |
|
USB Type-C |
|
Ethernet |
|
Cat-5 10/100
|
|
CAN1 |
|
Cable connector: WEiPU SF610B/P4 |
Pin Specifications
|
Pin Functions |
Limits |
Pull-Up |
Fly-wheeled |
Details |
|---|---|---|---|---|
|
Trigger |
±60V (RMS) |
|
|
Reluctor, Proximity, Optical or Hall |
|
Knock |
50v Transient |
|
|
|
|
An Temp |
VBat |
Configurable 1k or 10k to 5v, or no pull-up |
|
|
|
An Volt |
VBat |
|
|
Only reads 0-5V Input |
|
Digital Input |
±60V (RMS) |
Configurable 4.7kΩ Pull-up to VBat |
|
Safe for use with reluctor sensors. |
|
ADIO 1-4 |
5A Continuous
|
Configurable 1.5kΩ Pull-up to VBat |
Yes |
|
|
ADIO 5-8 |
5A Continuous Lowside
|
Configurable 1.5kΩ Pull-up to VBat |
Yes |
High side output capable |
|
Ignition |
5A Continuous |
100Ω Pull-up to 8v |
Yes |
|
|
Injection 1-12 |
5A Continuous |
|
No |
Recommend external flywheel diode when using for Aux PWM
|
|
Injection 13-16 |
5A Continuous |
100Ω Pull-up to 8v when used as aux |
Yes when used as Aux |
|
|
Aux. 1-4
|
3A Continuous
|
|
Yes |
|
|
Aux. 5-6 |
5A Continuous |
1.5kΩ Pull-up to VBat |
Yes |
|
|
CAN 1
|
3.6A Continuous |
|
|
Safe for use with Link CAN Lambda |
Dimensions:
