Razor PDM Presets

The Link Razor Power Distribution Module (PDM) is a software-configurable device that replaces traditional fuses and relays. Installing a Link Razor PDM can create cleaner wiring and give additional control that traditional fuses and relays do not have. Link Razor PDMs can be complex to set up so, to simplify the process, base configurations have been created for common PDM installations.

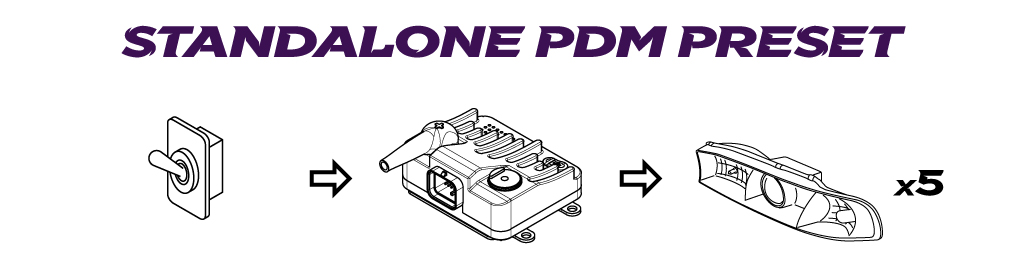

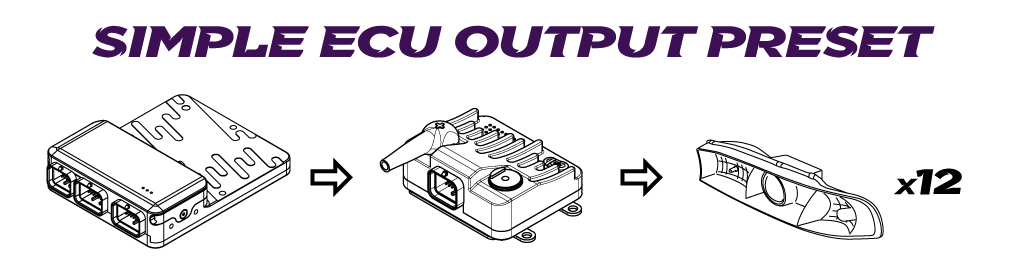

Below are a selection of PDM “presets”—preconfigured files designed to simplify setting up a PDM for various use cases. Each preset is designed as a plug-and-play solution, complete with wiring diagrams that correspond to the settings in the files.

These presets are designed to assist everyone, even if you’re just starting out with wiring and electronics. To make things easier, we’ve included a helpful glossary of terms that you might find useful, explaining terms such as PWM, High side, Low side, and more.
