G5 Voodoo Neo Technical Specification

Below is the technical specs and data for the G5 Voodoo Neo 4 and 6 ECU’s

Connectors:

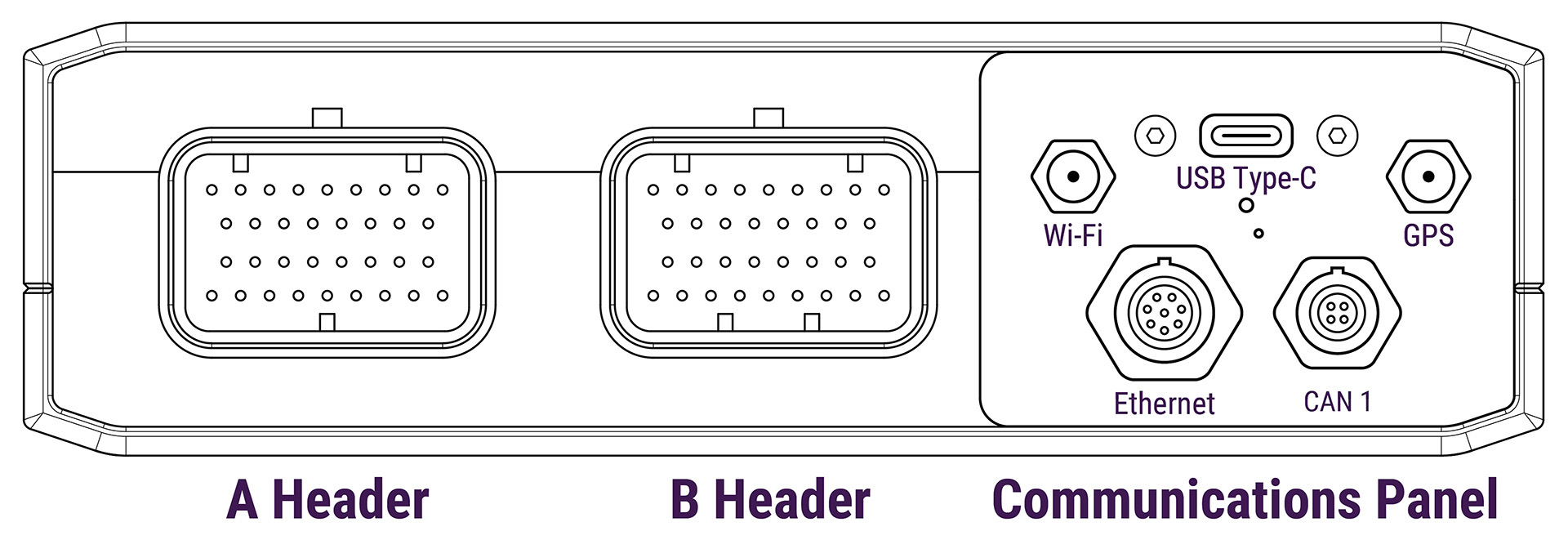

Header diagram.jpg

If you wish to make your own cables, the table bellow lists cable connector standards and part numbers where applicable. You can use the pinouts guide for more information on how to populate the connectors.

Also listed are relevant accessories for pre-made cables, pin kits, and antennas we have available to purchase through our dealer network.

ECU Connector

Relevant Accessories

Standard / Manufacturer Part No.

A Header

Link Pin Kit A

TE Superseal 1.0

B Header

Link Pin Kit B

TE Superseal 1.0

Wi-Fi

Wi-Fi Antenna

RP-SMA (reverse polarity)

GPS

SMA

USB

USB Type-C

Ethernet

Cat-5 10/100
Cable connector: WEiPU SF810B/P8

CAN1

Cable connector: WEiPU SF610B/P4

Pin Specifications

Pin Functions

Limits

Pull-Up

Fly-wheeled

Details

Trigger

±60V (RMS)

Reluctor, Proximity, Optical or Hall

Knock

50v Transient

An Temp

VBat

Configurable 1k or 10k to 5v, or no pull-up

An Volt

VBat

Only reads 0-5V Input

Digital Input

±60V (RMS)

Configurable 4.7kΩ Pull-up to VBat

Safe for use with reluctor sensors.

ADIO

5A Continuous
VBat

Configurable 1.5kΩ Pull-up to VBat

Yes

Ignition

5A Continuous

100Ω Pull-up to 8v

Yes

Injection 1-8

5A Continuous

No

Recommend external flywheel diode when using for Aux PWM

Injection 9-12

5A Continuous

Yes when used as Aux

Aux. 1-2

5A Continuous

1.5kΩ Pull-up to VBat

Yes

Aux. 3-6 (H-Bridge)

3A Continuous
(10A peak)

Yes

Aux. 7-12

5A Continuous

100Ω Pull-up to 8v

Yes

CAN 1
Power output

3.6A Continuous

Safe for use with Link CAN Lambda

Dimensions:
