Specifications

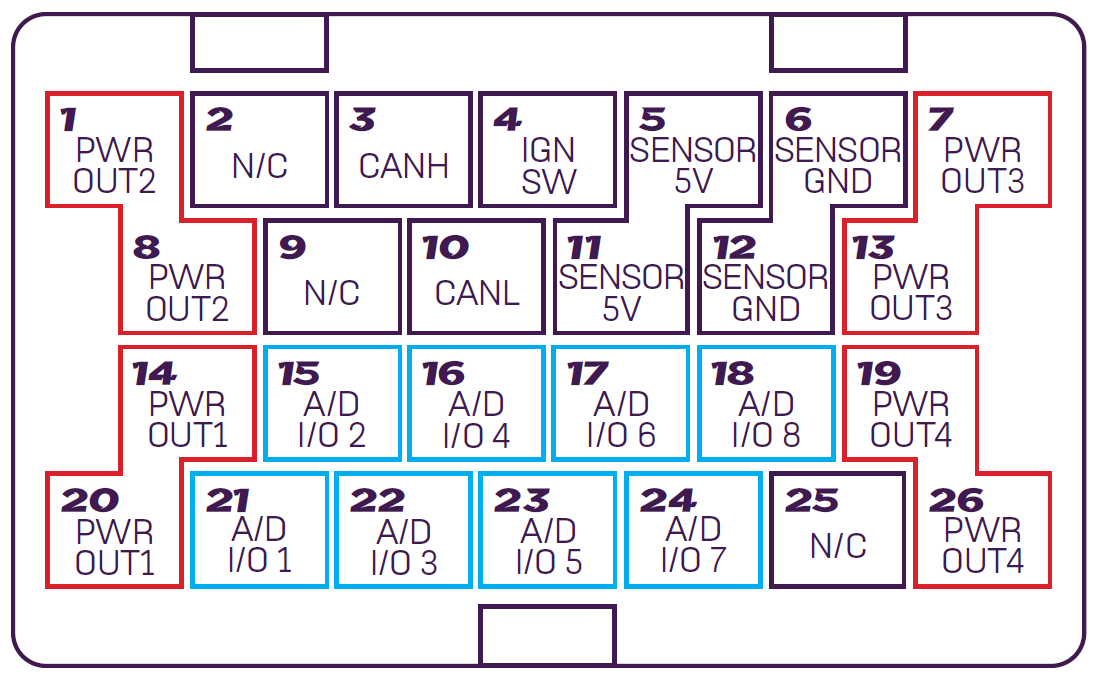

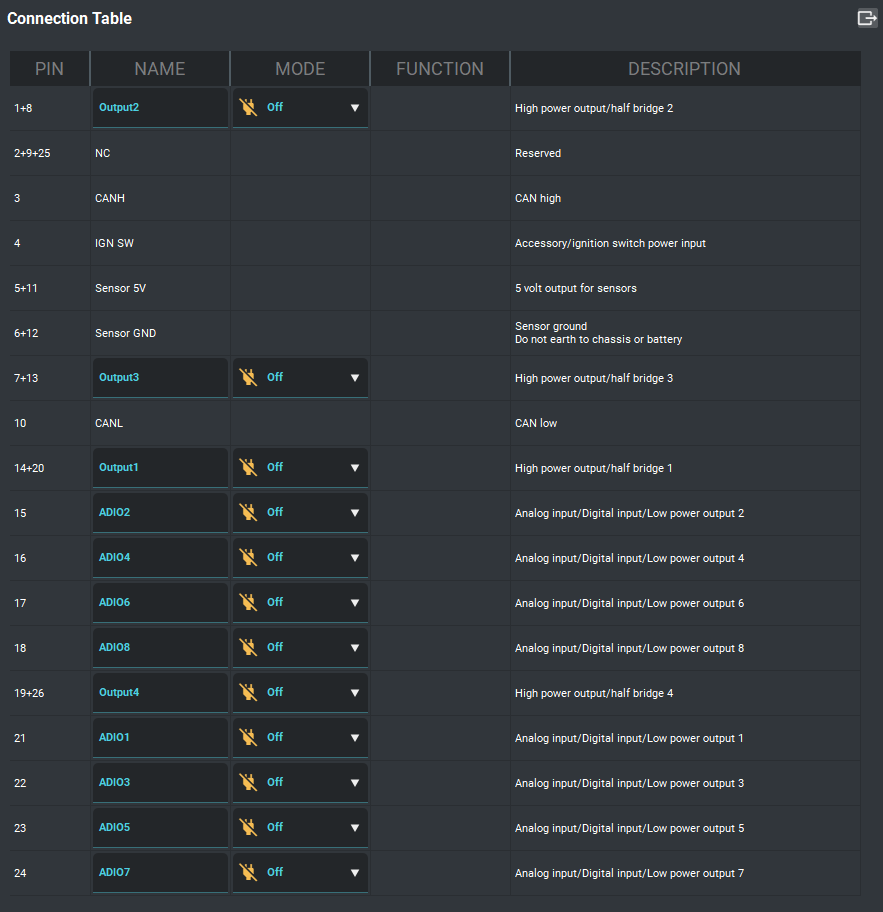

High Power Outputs

4 x High power outputs. Highside or lowside drive or paired in H-bridge configuration.
25A continuous, 80A max safe peak, PWM capable 10KHz max.

Multi-Purpose I/O

8 x "ADIO" - Analog-Digital-Input-Output

All 8 capable of analog and digital/switched input

All 8 capable of highside drive on/off output

4 x capable of PWM/Frequency/Duty cycle/Speed input. 10KHz max (ADIO 5-8)

4 x capable of PWM output. Highside drive only. 10 KHz max (ADIO 1-4)

Software controlled pull-ups (4K7 to 5V)

Output 8A max, overcurrent protected but current limit is not user adjustable (wire must be capable of 8A)

Max input voltage 12V, max measurable voltage 5V

Power

6 - 24 Volts operating range (across main terminals)

12 and 16 Volt systems supported - nominal operation

4.5V - 5.5V USB (Low power mode, configuration only)

<300mA No output static current draw

5V Sensor supply

Sensor ground

Communication

USB (C type connector)

CAN BUS user configurable bit rate

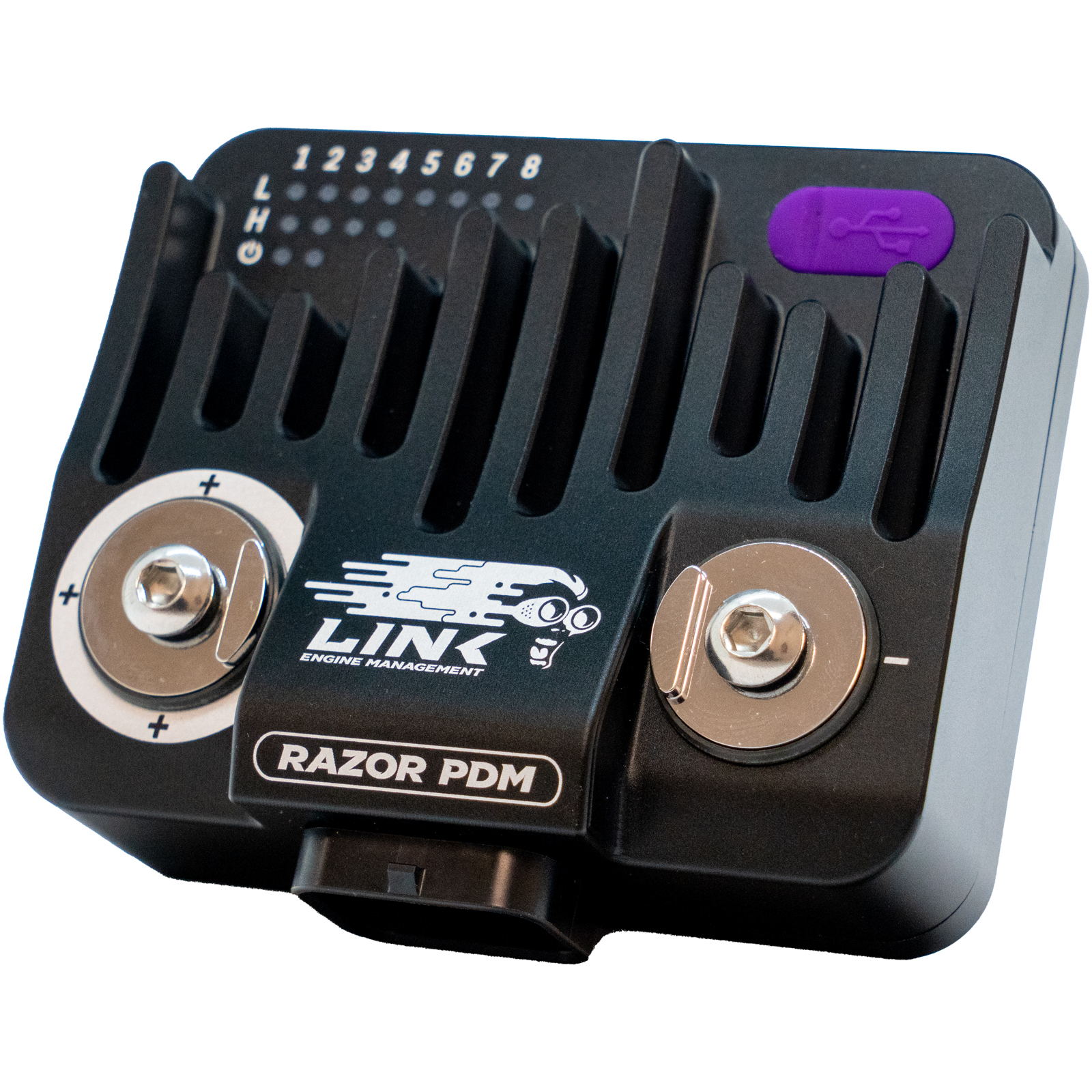

Physical

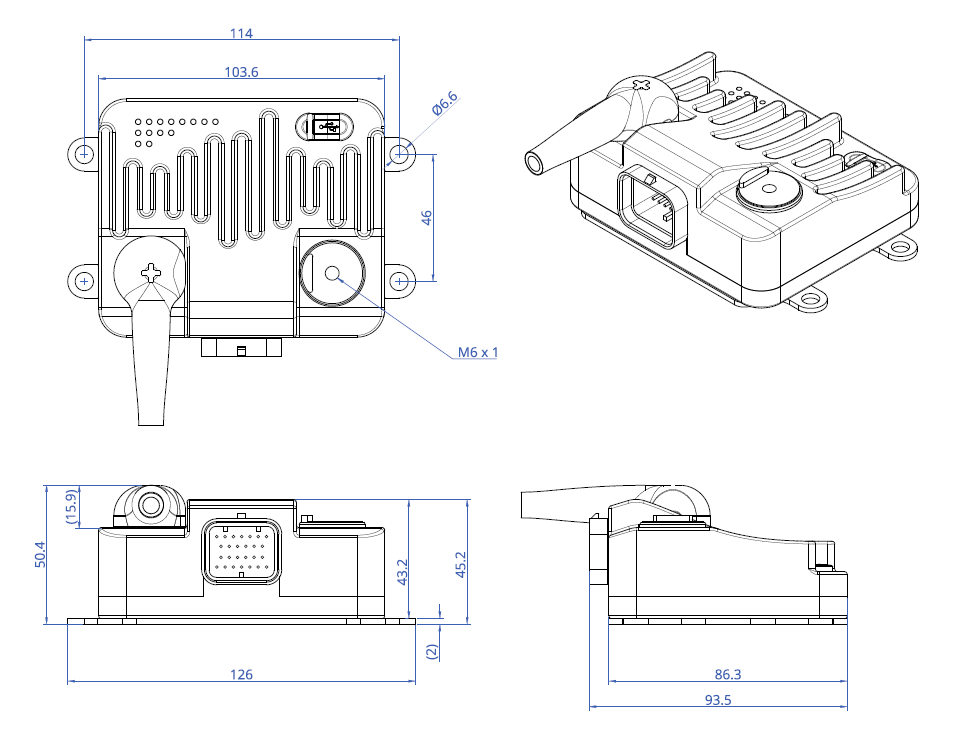

Dimensions - (L) 103.6 mm x (W) 93.4 mm x (H) 43.2 mm

Weight - 0.475 kg

Environment

Water resistant

-40 to +80 °C operating temperature
