G5 Voodoo Neo Installation Manual

Hardware

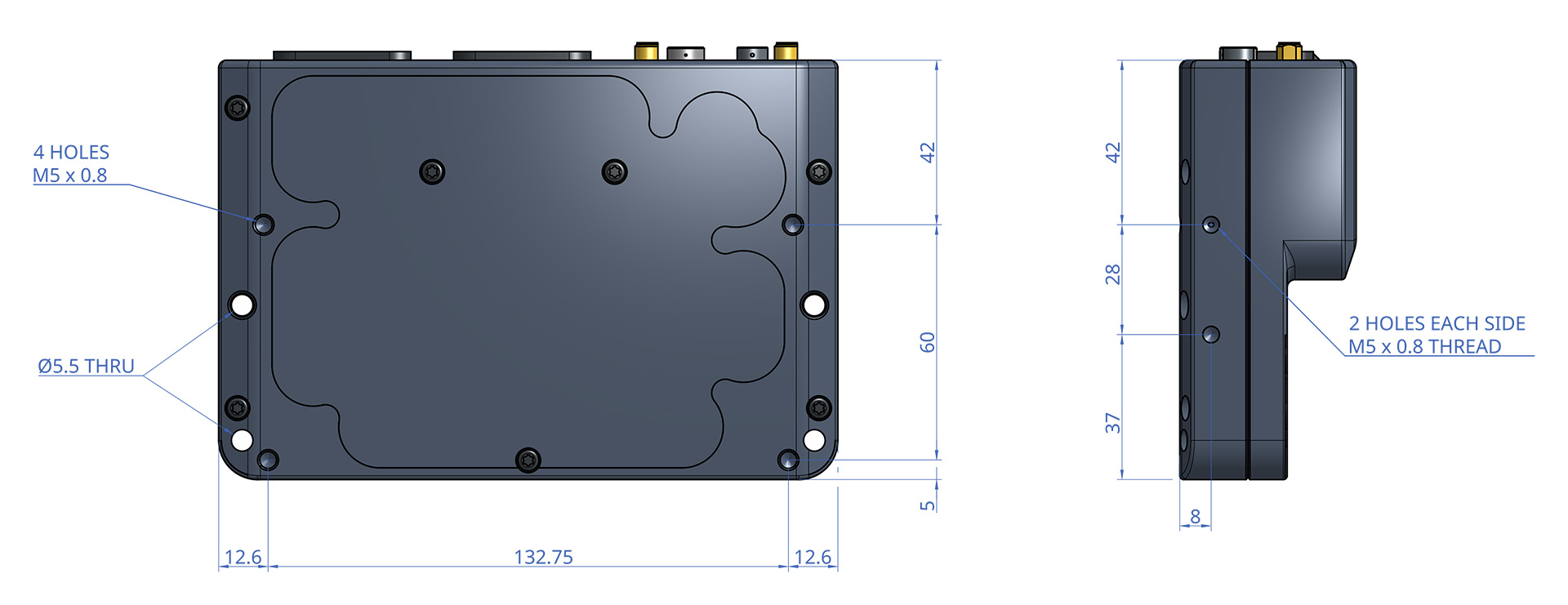

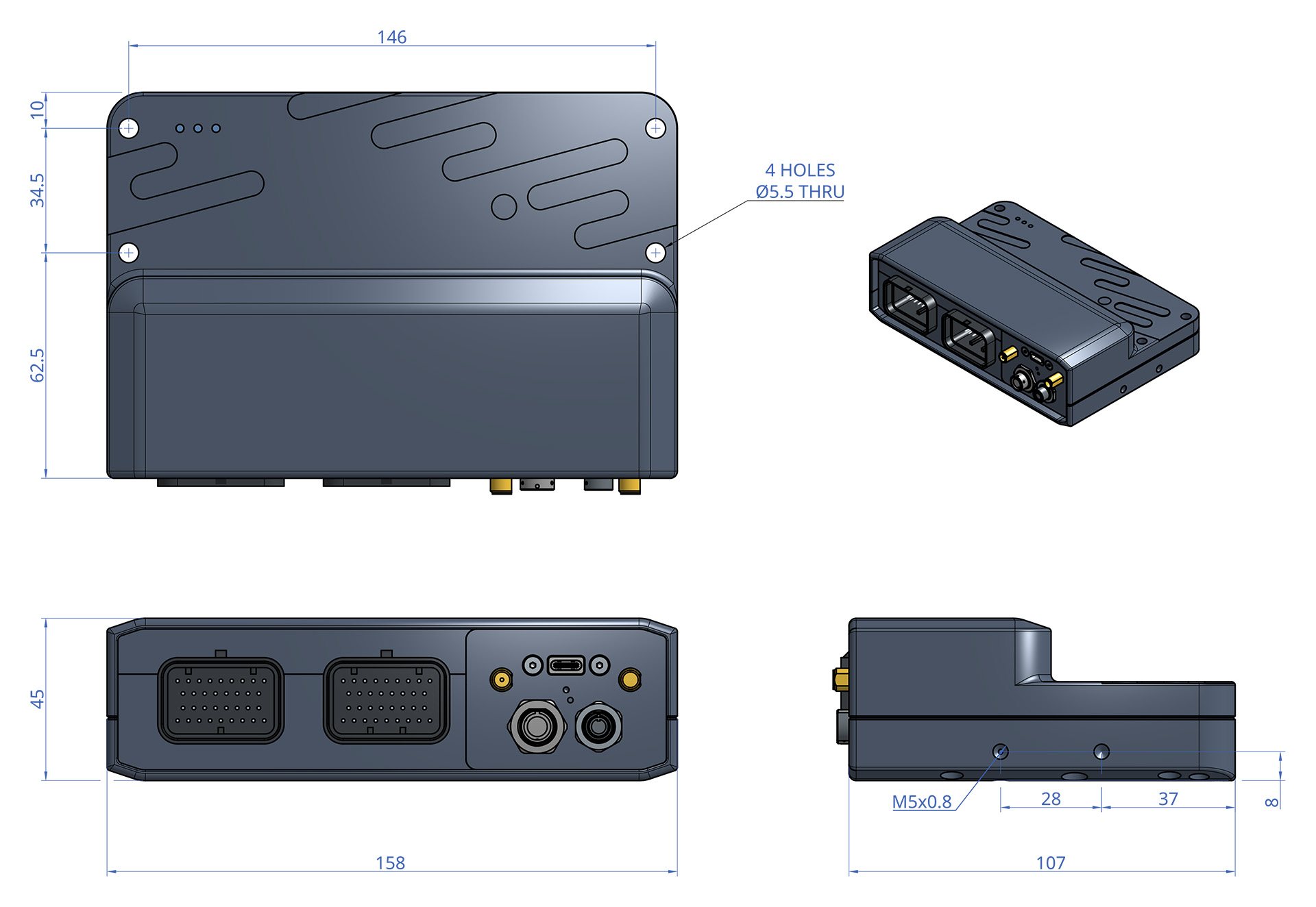

Several mounting options have been designed into the G5 Voodoo Neo case:

3 lengths of M5 button head cap screws have been included in in the box to cover most mounting scenarios.

The following requirements should be taken into account during installation:

The ECU should be fitted inside the vehicle cabin in a location that avoids exposure to excessive temperatures and the risk of water ingress.
The location of the ECU should also be physically separated from the ignition components or any other components that may cause interference.
Allow enough room at both ends of the ECU for the main wiring harness and tuning cables to be connected.
It is recommended that the ECU is rubber mounted in order to isolate the ECU from vibration.
For motorsport applications, the ECU should be located in a position that minimises the risk of physical damage in the event of the vehicle being involved in a crash.
ECUs used for speedway applications should be mounted securely within the cockpit area, protected from the elements and isolated from vibration.
Please refer to the Wiring Information section in PCLink Help for additional information.
